PafLS - PAFEC Loudspeaker analysis tool

Sample animations of the accentuated deformed structure showing different modes at the selected frequencies.

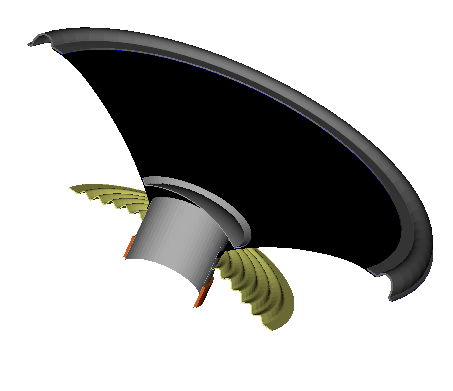

Animation of structural deformation at 100Hz. showing ideal pistonic behaviour.

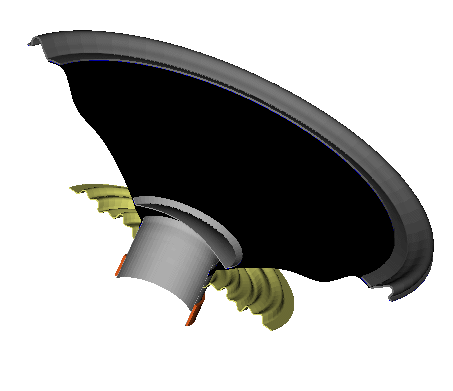

Animation of deformed shaped at 1900Hz. indicating cone break-up

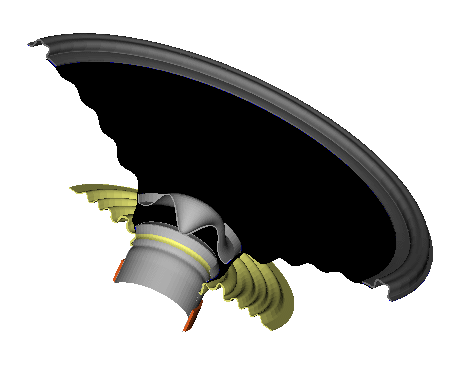

Animation of deformed shaped at 10000Hz. a high order break-up mode.
